ADD Battery 21700 5000mah https://www.yycdrones.ca/product-page/21700-5000mah-battery-for-tx16s-and-tx16s-mkii



Features

  • Improved internal circuitry and optimized power supply.
  • New charge circuitry with integrated reverse-polarity protection.
  • Optimized charge IC now allows up to 2.2A internal USB-C charge current.
  • Rear-mounted audio jack provided headphone output.
  • V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01).
  • Optional high/low rear grips are included for improved ergonomics.
  • Improved S1/S2 knobs with clear centre-detents.
  • Improved LS/RS Sliders with smoother feel and better centre-detents.
  • Redesigned battery cover for improved battery access.
  • Retooled body shell with improved fit and finish.
  • Trainer socket changed to standard TRS 3.5mm socket.
  • Rear DIY Socket added for personalized mods.
  • Improved internal plastics for better longevity.
  • Available ELRS and 4in1 versions.

Specification

  • Item: TX16S Mark II
  • Size: 287x129x184mm
  • Weight: 750g (without battery)
  • Transmission frequency: 2.400GHz-2.480GHz
  • Transmitter module: Option 1: Internal 4-in-1 multi-protocol module (CC2500 CYRF6936 A7105 NRF2401) Option 2: Internal ELRS (SX1280)
  • Transmitting power: Internal 4-in-1 multi-protocol module : Max 100mw (protocol dependent); Internal ELRS : Max 250mw (transmitting power is adjustable)
  • SD card: 256MB by default, 8GB maximum
  • Antenna gain: 2db (transmit power adjustable)
  • Working current: 400mA
  • Working voltage: 6.6-8.4v DC
  • Remote control distance:> 2km @ 22dbm
  • Radio firmware: EdgeTX
  • Module Firmware: Multiprotocol- Module (4IN1) -OR- ExpressLRS (ELRS)
  • Channels: Up to 16 channels (depending on the receiver)
  • Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
  • Gimbal: Option 1: V4.0 Hall sensor with Aluminium fascia; Option 2: AG01 CNC Hall sensor
  • Module Bay: JR compatible module bay
  • Upgrade method: Supports USB-C online / SD card offline upgrade

Support EdgeTX and OpenTX



Accessories

  • AG01 Full CNC Hall Gimbal
  • Replacement HALL V4 Gimbal
  • 21700 5000mAh Battery
  • TX16S Radio Carry Case Large
  • TX16S Foam Box Zipper Cover
  • TX16S Replacement Switch Assemblies (SA+SB/SC+SD/SF+SE/SH+SG)
  • TX16S CNC V3 Upgrade Parts Set

Package Includes

  • 1 * TX16S Mark II Radio Controller
  • 1 * 18650 Tray
  • 1 * USB-C Cable
  • 1 * Screen Protector
  • 1 pair of flat grips
  • 1 pair of raised grips (installed on radio by default)
  • 1 * TX16S Key Chain
  • No battery - add separately https://www.yycdrones.ca/product-page/21700-5000mah-battery-for-tx16s-and-tx16s-mkii

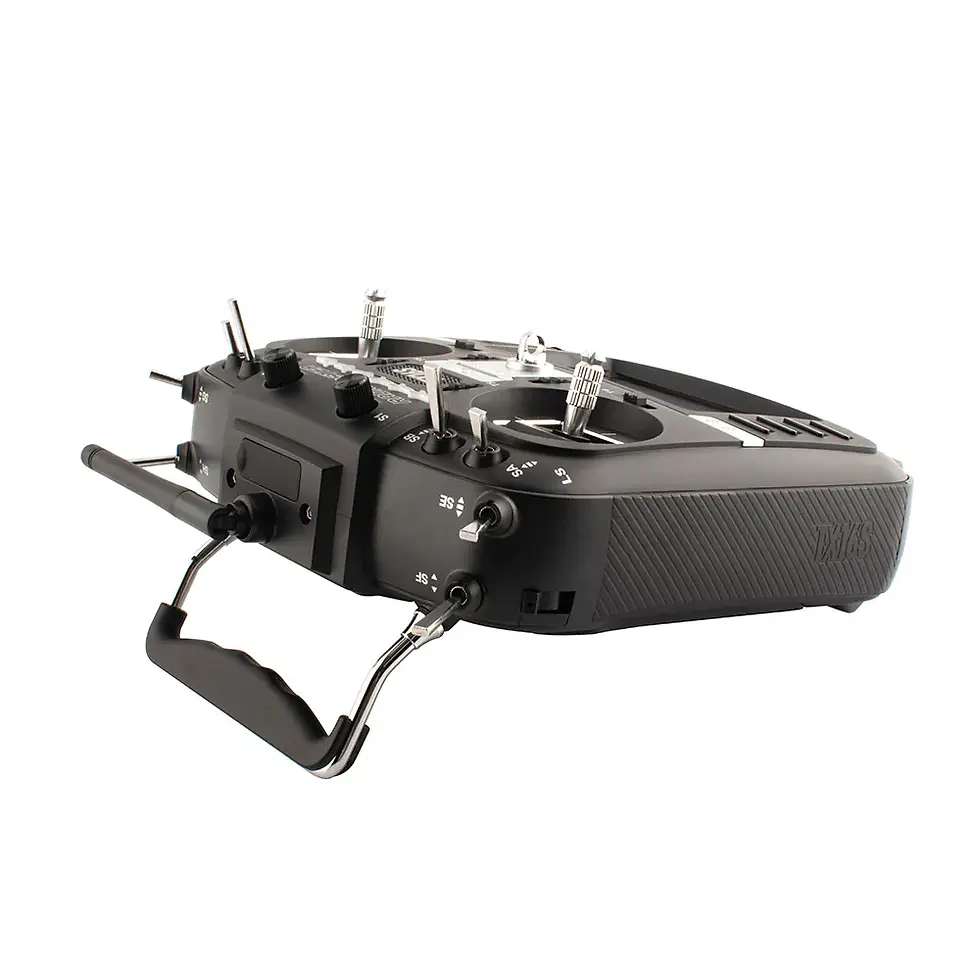

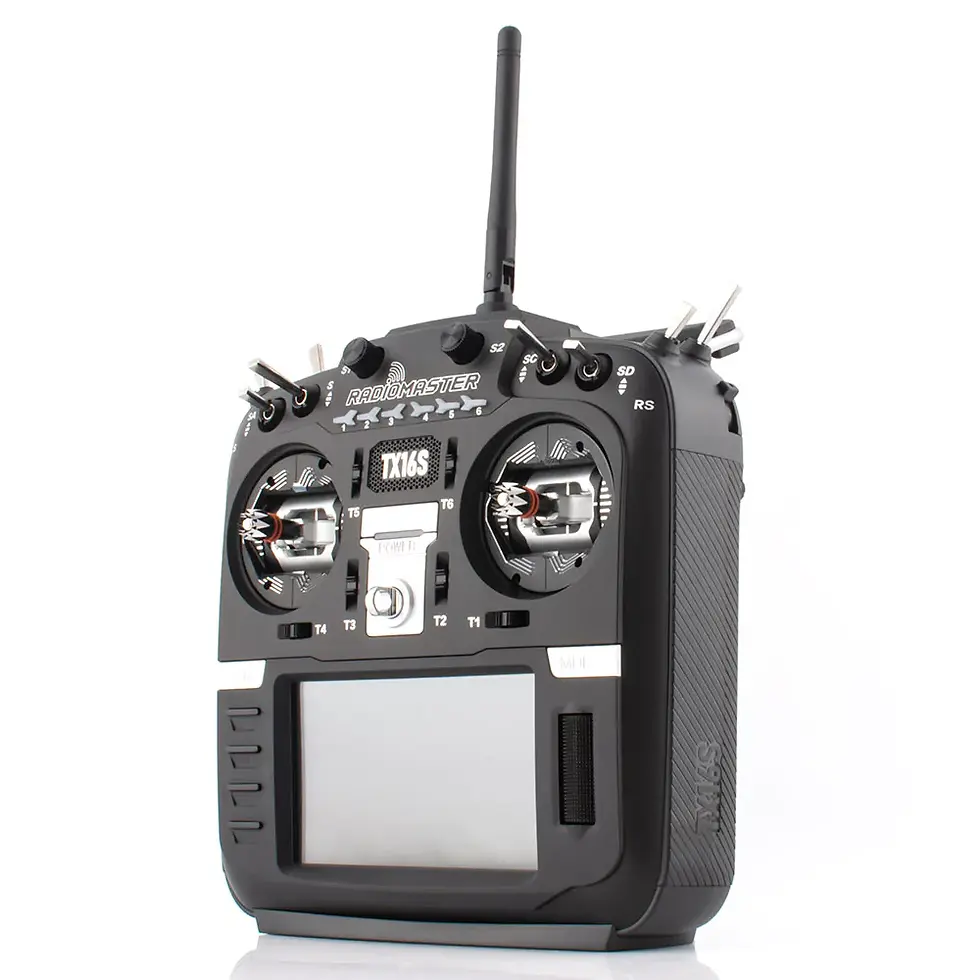

RadioMaster TX16S MKII HALL V4.0 ELRS (no battery)

SKU: HP0157.0020
C$356.91Price
Only 4 left in stock
