Summary:
The Micro-FPV quads gives players a lot of fun, but the power is also being upgraded. The new GEP-GR1206 will be a stronger power output. GR1206 will have 3 KV options to meet players’ needs for different situations.The 4500KV is recommended with 3-inch propeller and 3~4S battery.The 6000KV is recommended with 2.5~3 inch propeller and 3S batteries.The 7500KV is recommended with 2.5 inch propeller and 3S battery.
Specifications：

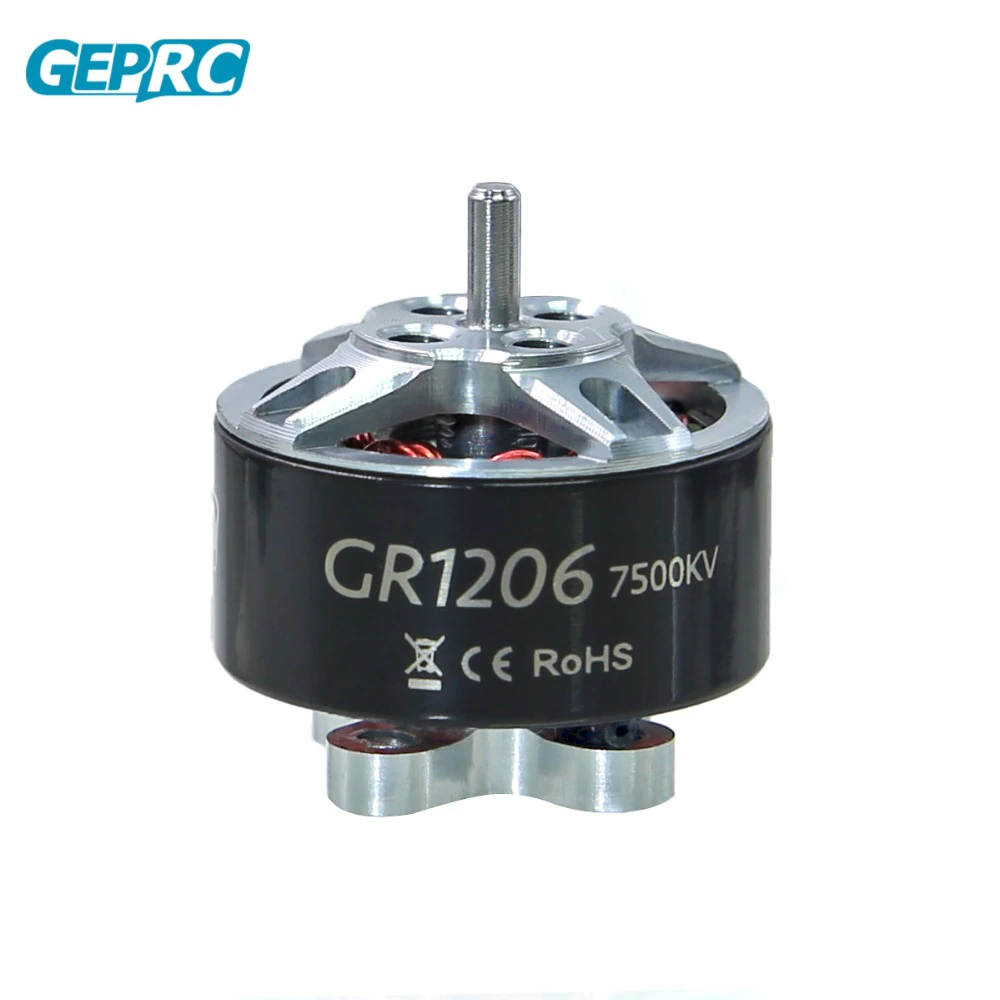

Item name: GEP-GR1206
KV: 3600/4500/6000KV/7500KV
Configuration:9N12P
Stator Diamter:12mm
Stator Length:6mm
Shaft Diameter:1.5mm
Motor (Dimension(Dia.*Len)):Φ8*17mm
of Cells(Lipo):2~4S
Internal Resistance:120mΩ
Max Current(180S):15A
Rotor: N52H arc magnets
Bearings:NMB 520
Base casing: Al 7075
Wire AWG: 28AWG
Weight(g):8.3g
Features:
The new 1206 brushless motor has a stronger power output
Lightweight base design, no change in weight reduction intensity
The upper cover is specially designed for efficient heat dissipation and strong structure
Precision CNC processing, aviation aluminum 7075 aluminum, high precision, high strength
N52H magnet is adopted to ensure torque and high temperature resistance without losing magnetism
NMB520 bearing of Japan ensures low vibration and low noise when the motor runs at high speed
Excellent heat dissipation structure design and 20% reduction of temperature of the same type of motor
180 ℃high temperature resistant enameled wire
Reliable magnetic circuit optimization, smoother start
The weight is only 8.3g (including wire)
