Based on the F405 2-4S 20A Brushless Flight Controller V4, the F405 4S 20A Toothpick Brushless Flight Controller V5 applies a new ICM42688 gyro and ESC chip that comes with BLUEJAY ESC firmware so it supports bidirectional D-shot. In addition to plug&play ports for the receiver and HD Digitial VTX the same as the V4 board, the V5 board is made with a rational layout for easy solder and preventing solder from jumping to another pad and shorting components.

Bullet Point

• Not only is the flight controller board made with a rational layout but it is also designed with larger solder pads. It is very easy for pilots to solder external electronics.

• The flight controller is capable of handling 20A continuous current and reaching 25A peak current due to high-quality MOSFETs.

• Soldering motor wires to pad directly allows lower resistance for more current on motors. Besides, solder pads are reinforced by thick copper and edge plating process, ensuring a solid value and durable use.

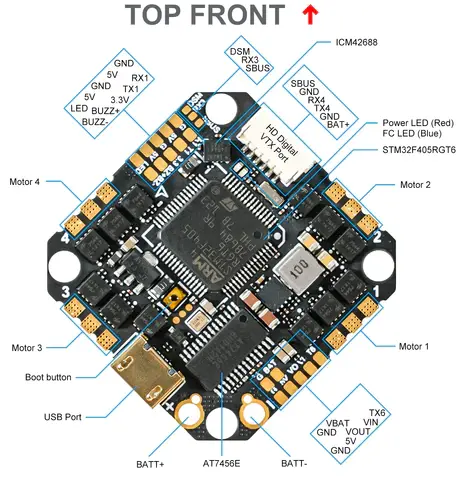

• Reserving the UART ports layout, UART3 for RX, UART4 for HD digital VTX, UART6 for Analog VTX and UART1 for spare use, it is more convenient for pilots to solder.

• Come with a 25.5*25.5mm whoop mounting pattern, this board can be added to both the toothpick drone and the cinematic whoop quadcopter frame like Pavo25 and X-knight 35.

Specifications

Flight Controller

• CPU: STM32F405RGT6

• Six-Axis: ICM42688 (SPI connection)

• Mounting Size: 25.5*25.5mm (M2 Anti-vibration rubber damper available)

• FC Firmware: betaflight_4.3.1_BETAFPVF405

• OSD: Built-in Betaflight OSD (OSD chip: AT7456E)

• Receiver: SBUS/CRSF/DSMX Receiver

• BEC: 5V 3A

• Built-in current sensor

• Weight: 8.35g

ESC

• ESC Chip: SILABS EFM8BB21F16G-C

• Support D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM

• Input voltage: 2S-4S Lipo

• Continuous current: 20A

• Peak current: 25A

• Firmware: G_H_20_48_v0.16.HEX (Default BLUEJAY), BLHeli_S (Optional)

Recommend Parts

If you want to try the popular ExpressLRS receiver version for long-range performance, highly recommend you check the items for the ExpressLRS series.

• Drones: Cetus X, 85mm whoop frame like Meteor85, Meteor85 HD, 3" toothpick drones

• Battery: BT2.0 450mAh 1S 30C Battery, 450mAh 2S 45C Battery

• Motor: 1102 18000KV motor, 1103 11000KV motor

• Propeller: HQ3020 2-blade Props, 2020 4-blade Props

Package

• 1 * F4 1S 12A AIO FC

• 4 * Anti-vibration Rubber Dampers

• 4 * M2 x 10mm Screws

• 4 * M2 x 10mm Screws

• 4 * M2 Screw Nut

• 8 * PH-1.25 Connectors for Motor

• 1 * SH1.0 4-Pin Cable

• 1 * SH1.0 4-Pin to USB Type-C Adapter
